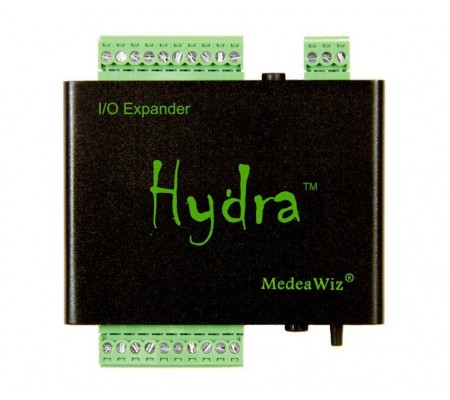

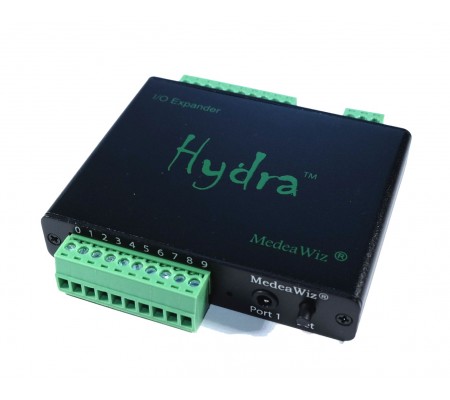

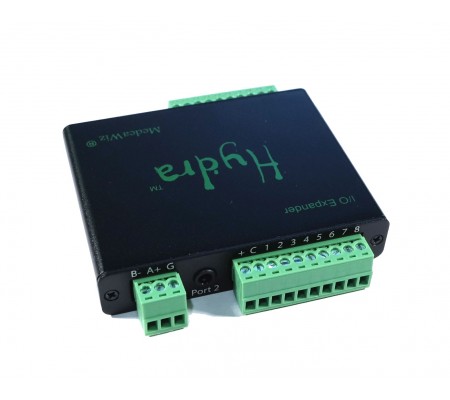

Hydra H9X28D Input / Output Expander

OVERVIEW
The H-9X28D Hydra® from MedeaWiz transforms a single Sprite 4K DS-S4 into a fully featured control hub. Hook it up via the included 4-pole 3.5 mm jack lead (which also powers the Hydra) and unlock:

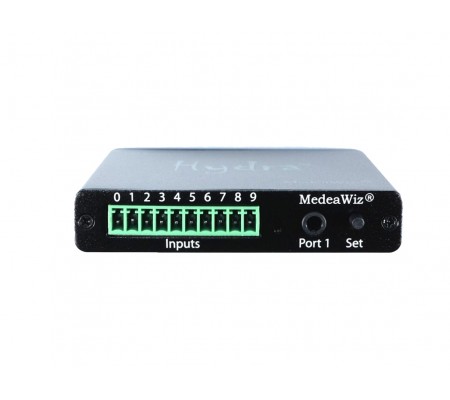

- Up to 25 trigger inputs (buttons or keypad)

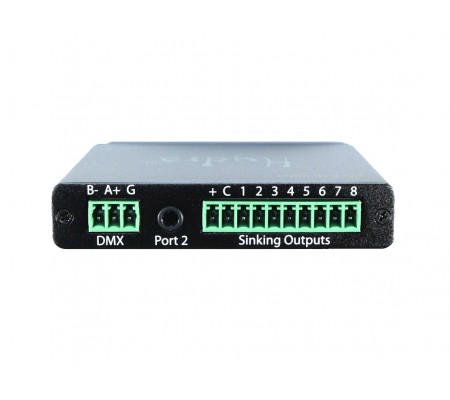

- Eight low-voltage sinking outputs (for LEDs, relays, lamps)
- PIR motion-sensor input
- DMX512 or MIDI control

CONTROL MODES & FLEXIBILITY
With over 75 pre-programmed modes (and more via firmware updates), you can tailor behavior to your application:
Mode 1 (Default): 9 buttons play files 001–008; button 9 resets to looping file 000; motion sensor also triggers 001; each active output follows its file playback.
Matrix & Keypad:
- 5 × 5 matrix support for 25 discrete inputs
- 3 × 4 keypad support for up to 99 unique file triggers
Protocol Control:
- DMX512: Address up to 200 files per Sprite over a daisy-chained DMX line
- MIDI: Play up to 127 files via MIDI keyboard/controller (adapter required)
Advanced Triggers: Random file picks, increment/decrement stepping, alternate looping files, and more
Dual-Sprite Modes: Some configurations let one Hydra drive two independent Sprites

EXPANDABILITY & INTEGRATION
PIR Motion Sensor (MSA-B-PIR): Auto-trigger content on detected presence
SS-38 Serial Splitter: Control up to eight Sprites in perfect sync
Hydra Firmware v4.40+: Includes new game- and escape-room-focused modes

WHY CHOOSE THE HYDRA EXPANDER?
Scalable Interactivity: From a single button to a full keypad or DMX console
Robust Performance: Industrial-grade reliability for 24/7 operation
Seamless Integration: No extra power supplies, connects directly to Sprite’s serial port
Future-Ready: Regular firmware updates and mode expansions

DOWNLOADS & SUPPORT
Manual:
H-9X28D Hydra® I/O Expander manual for firmware V4.00 to 4.40
