Expand a single control signal into eight independent outputs for seamless, synchronized playback across multiple Sprite 4K DV-S4 media players—ideal for large-scale exhibits, video walls and multi-screen installations.

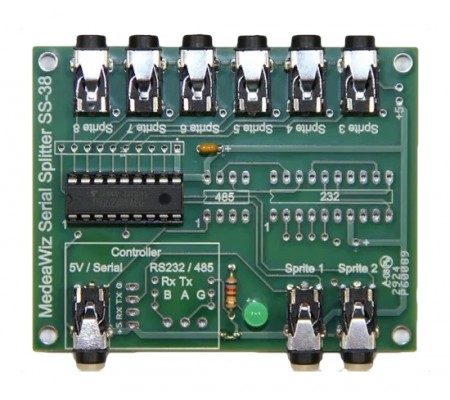

SS-38 Serial Splitter board
€56.99
Expand a single control signal into eight independent outputs for seamless, synchronized playback across multiple Sprite 4K DV-S4 media players—ideal for large-scale exhibits, video walls and multi-screen installations.
OVERVIEW
The SS-38 from MedeaWiz® is a plug-and-play RS232-TTL serial data splitter and buffer. Feed one trigger or serial command into its input port, and it distributes that signal identically to up to eight Sprite DV-S4 4K players. Multiple SS-38 units can be daisy-chained to control any number of devices from a single source—no software configuration required.
KEY FEATURES
Single Input → Eight Outputs
- One control source for up to eight media players
Daisy-Chainable Expansion
- Link multiple splitters using standard 4-pole 3.5 mm leads for unlimited scalability
High-Speed Support
- Handles serial data up to 115,200 baud without adjustment
Universal Trigger Compatibility
- Works with RS232-TTL sources, push-buttons, Hydra® expanders, motion sensors, PLCs and Show-Controllers
Included Accessories

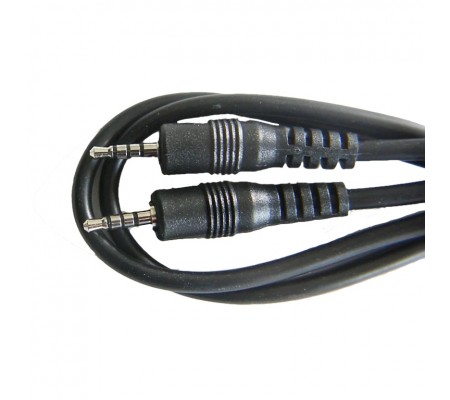

- Supplied with a 1 m 4-pole 3.5 mm jack-to-jack data lead; additional cables available separately
HOW IT WORKS
Connect Control Source
- Plug your serial or trigger-level output (up to RS232-TTL) into the SS-38’s input jack.
Distribute to Players
- Use the eight 4-pole 3.5 mm output jacks to feed Sprite DV-S4 4K units—each receives the same command simultaneously.
Scale Up
- Daisy-chain another SS-38 into any output jack to multiply outputs by eight again.
INSTALLATION & INTEGRATION
Plug-and-Play: No drivers or configuration needed—just standard serial rules apply.
Cabling: Includes one 1 meter 4-pole 3.5 mm jack-to-jack data lead; additional cables can be purchased to connect each Sprite here:
- Additional 1 Meter Serial & Trigger Cable, 4-Pole 3.5 Mm Jack
Power: Draws operating power directly from the connected Sprite® player—no separate power supply.
COMPATIBILITY & OPTIONS
Works With:
– Sprite DV-S4 4K media players
– Hydra I/O Expanders
– MSA-B PIR motion sensors
Special Orders: RS232 (±12 V) and RS485 input versions available on request—contact us for pricing.
DOWNLOADS & SUPPORT
Manual:
SS-38 Serial Splitter user manual
Sprite® and MedeaWiz® are Registered Trademarks of MedeaWiz Inc.
